Sinuous FJ200
EU Edition includes
Innovative Temperature Protection System for Safer Charging
Centered 510 Spring Loaded Connector
4600mAh Built-in Battery with 200W Max Output
1.3inch Large Display with 2A Quick Charge
Powerful WS Series Coils & 2ml/4ml Options
Sinuous FJ200
Product Introduction
The Sinuous FJ200 is a fresh look at an Internal Dual Battery Device. It hails design cues from the original Predator 228 but with the addition of an updated centered 510 and larger OLED. Featuring an innovative temperature protection technology, the safety of charging will be greatly enhanced. The 200W max output and 4600mAh battery are engineered to deliver a satisfying all day vaping experience. The Divider atomizer rivals the look of the new Sinuous FJ200 with the convenient top fill feature that appears hidden with the strategically designed accent lines and has a juice capacity of 2ml to 4ml. The Sinuous FJ200 Battery and Divider atomizer kit show the attention to detail that only Wismec can deliver.
Sinuous FJ200
Sinuous FJ200

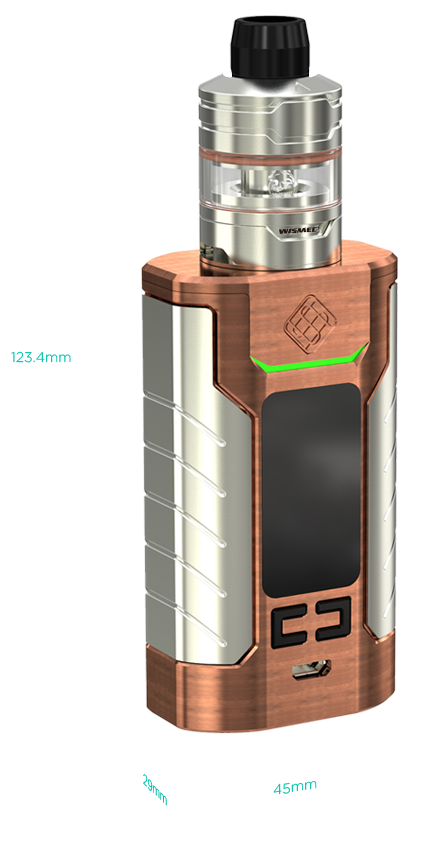

Size: 45.0*29.0*123.4mm
Weight: 264g
E-liquid Capacity: 2ml/4ml
Thread Type: 510 spring loaded connector
Output Mode: VW/TC-Ni/TC-Ti/TC-SS/TCR mode
Output Wattage: 1-200W
Resistance Range: 0.05-1.5ohm for TC modes
Resistance range: 0.1-3.5ohm for VW mode
Temperature Range: 100-315°C/200-600°F (TC modes)
Maximum Charging Current: 2A
Maximum Output Current: 50A
Output Voltage Range: 0.5-9V
EU Edition
For the EU edition, please unplug the mouthpiece firstly, and then push the top cap.
Fill the liquid into the tank through the hole slowly. After filling, push the top cap to close the hole.
Sinuous FJ200
Main Features:

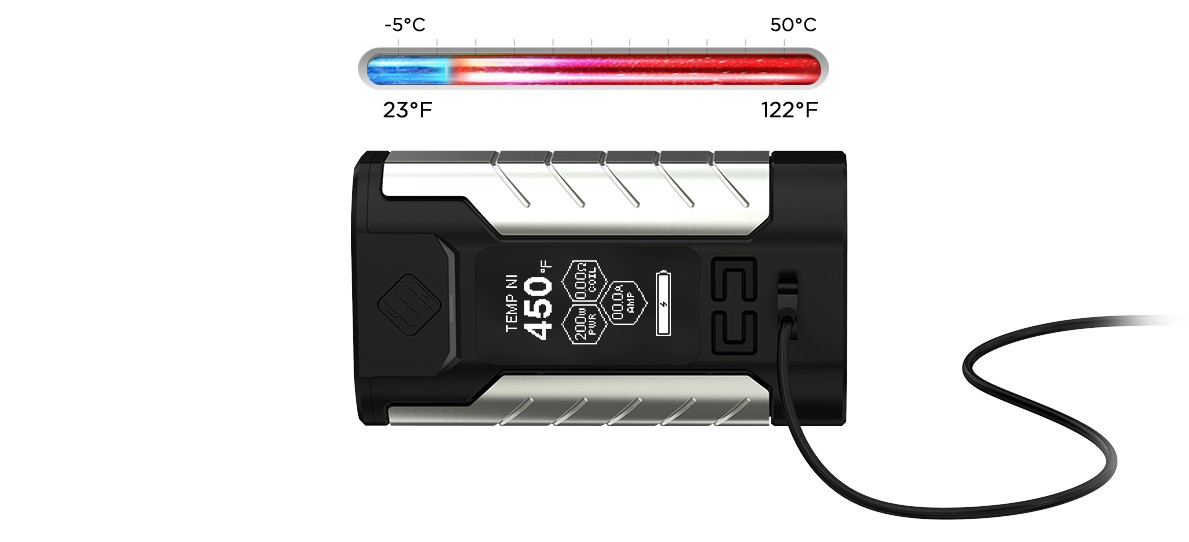

Temperature Protection System for Safer Charging:The innovative temperature protection technology is firstly applied into the Sinuous FJ200 mod. It will improve the safety performance of charging effectively.

Sinuous FJ200
200W Max Output & 1.3inch Large Display: Powered by a sustainable 4600mAh internal battery, Sinuous FJ200 is capable of outputting 200W power, providing you with large vapor. The 1.3inch large screen can present all parameters in a more clear way.

Sinuous FJ200
Centered 510 Spring Loaded Connector: The innovative design of centered 510 connector is a big plus to the Sinuous FJ200. It can hold tanks up to 28mm diameter.

Sinuous FJ200
Hidden Fire Button with Green Indicator Light: Compact yet intelligent, the mod with ergonomically designed shape is easy to grip and carry. The hidden fire button and responsive indicator light also make Sinuous FJ200 much fashionable.

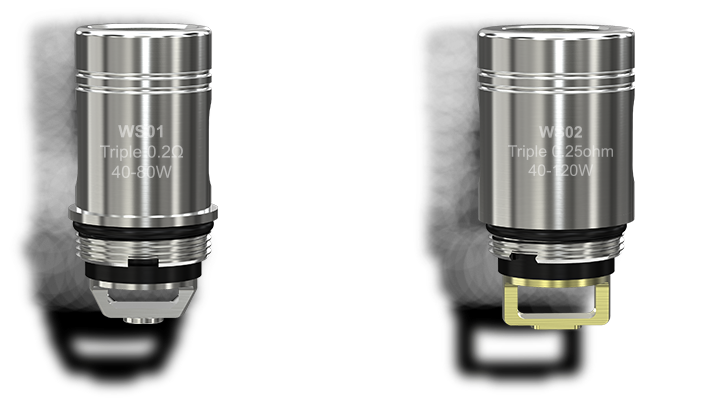

Powerful WS Coils for Optimal Flavor: The DIVIDER comes with powerful WS coils: WS01 Triple 0.2ohm head and WS02 Triple 0.25ohm head, providing you with different vaping experience.
Sinuous FJ200
Offering 2ml and 4ml Options: With the same tank, you can covert it from 2ml to 4ml by unplugging the silica gel plug only. The versatility and practicability of DIVIDER make it much attractive and charming.
Sinuous FJ200
2A Max Charging Current for Quick Charge: With 2A maximum charging current, the mod can be fully charged more quickly than normal ones.
Sinuous FJ200
Dual Circuit Protection: Two sets of circuit protection system are applied, realizing the overall protection of over-charging, over-current and over-discharging.
Sinuous FJ200
Detachable Structure for Easy Cleaning: All the parts of DIVIDER can be detached and reassembled, bringing much convenience in cleaning it.
Sinuous FJ200
Sinuous FJ200
Upgradeable Firmware with Timeout Settings: Coming with the upgradeable firmware, you can set the timeout duration to your preference.
Sinuous FJ200

How to Reset
Sinuous FJ200
If you get stuck while upgrading, just press the right regulatory button and
then insert into the reset hole with a needle to restart.
Simply charge the device by connecting it with a computer or a wall adapter via USB cable.
Sinuous FJ200

Standard Configuration

1 * Sinuous FJ200
1 * WS01 Triple 0.2ohm Head
1 * WS02 Triple 0.25ohm Head
1 * QC USB Cable
1 * Warning Card
2 * User Manual
Spare Parts

Sinuous FJ200
